1D Stellar wind¶
In this example, we consider a simple spherically symmetric stellar wind model. We use numpy and astropy to conveniently define the model parameters.
[1]:
import numpy as np
import matplotlib.pyplot as plt
from astropy import units, constants
Model setup¶
Geometry¶
The model box is given by the radial coordinate \(r \in [r_{\star}, r_{\text{out}}] = [1, 10^{4}] \ \text{au}\). The model is discretised on a logarithmically-spaced grid consisting of 1024 elements with \(r \in [r_{\text{in}}, r_{\text{out}}] = [10^{-1}, 10^{4}] \ \text{au}\). Note that \(r_{\text{in}} < r_{\star}\), such that several rays hit the stellar surface, since, for concenience, we use the same discretisation for the impact parameters of the rays. We impose a boundary condition at \(r=r_{\star}\), such that the part of the model inside the star (\(r<r_{\star}\)) does not contribute to the resulting observation, and thus cannot be reconstructed.
[2]:
n_elements = 1024
r_in = (1.0e-1 * units.au).si.value
r_out = (1.0e+4 * units.au).si.value
r_star = (1.0e+0 * units.au).si.value
rs = np.logspace(np.log10(r_in), np.log10(r_out), n_elements, dtype=np.float64)
Velocity¶
For the velocity field, we assume a typical radially outward directed \(\beta\)-law, \begin{equation*} v(r) \ = \ v_{\star} \ + \ \left( v_{\infty} - v_{\star} \right) \left(1 - \frac{r_{\star}}{r}\right)^{\beta} , \end{equation*} in which \(v_{0} = 0.1 \ \text{km}/ \text{s}\), \(v_{\infty} = 20 \ \text{km}/ \text{s}\), and \(\beta=0.5\).
[3]:
v_in = (1.0e-1 * units.km / units.s).si.value
v_inf = (2.0e+1 * units.km / units.s).si.value
beta = 0.5
v = np.empty_like(rs)
v[rs <= r_star] = 0.01
v[rs > r_star] = v_in + (v_inf - v_in) * (1.0 - r_star / rs[rs > r_star])**beta
Density¶
We assume the density and velocity to be related through the conservation of mass, such that, \begin{equation*} \rho \left( r \right) \ = \ \frac{\dot{M}}{4 \pi r^{2} \, v(r)}, \end{equation*} where, for the mass-loss rate, we take a typical value of \(\dot{M} = 5.0 \times 10^{-6} \ M_{\odot} / \text{yr}\).
[4]:
Mdot = (3.0e-6 * units.M_sun / units.yr).si.value
rho = Mdot / (4.0 * np.pi * rs**2 * v)
CO abundance¶
The CO abundance is assumed to be proportional to the density, such that, \(n^{\text{CO}}(r) = 3.0 \times 10^{-4} \, N_{A} \, \rho(r) / m^{\text{H}_2}\), with \(N_{A}\) Avogadro’s number, and \(m^{\text{H}_2} = 2.02 \ \text{g}/\text{mol}\), the molar mass of \(\text{H}_{2}\).
[5]:
n_CO = (3.0e-4 * constants.N_A.si.value / 2.02e-3) * rho
n_CO[rs<=r_star] = n_CO[n_CO<np.inf].max() # Set to max inside star
Temperature¶
For the gas temperature, we assume a power law, \begin{equation*} T(r) \ = \ T_{\star} \left(\frac{r_{\star}}{r}\right)^{\epsilon} , \end{equation*} with \(T_{\star} = 2500 \ \text{K}\), and \(\epsilon=0.6\).
[6]:
T_star = (2.5e+3 * units.K).si.value
epsilon = 0.6
T = np.empty_like(rs)
T[rs <= r_star] = T_star
T[rs > r_star] = T_star * (r_star / rs[rs > r_star])**epsilon
Micro-turbulence¶
Finally, we assume a constant turbulent velocity \(v_{\text{turb}}(r) = 1 \ \text{km}/\text{s}\).
[7]:
v_turb = (1.0e+0 * units.km / units.s).si.value
TensorModel¶
With all the data in place, we can start building a pomme model. First, we store all model parameters as a TensorModel object and store this in an HDF5 file. We will use this later as the ground truth to verify our reconstructions against.
[8]:
from pomme.model import TensorModel
model = TensorModel(sizes=r_out, shape=n_elements)
model['log_r' ] = np.log(rs)
model['log_CO' ] = np.log(n_CO)
model['log_turbulence'] = np.log(v_turb)
model['log_v_in' ] = np.log(v_in)
model['log_v_inf' ] = np.log(v_inf)
model['log_beta' ] = np.log(beta)
model['log_epsilon' ] = np.log(epsilon)
model['log_T_star' ] = np.log(T_star)
model['log_r_star' ] = np.log(r_star)
model.save('1D_stellar_wind_truth.h5')
SphericalModel¶
First, we define the functions that can generate the model distributions from the model parameters.
[9]:
import torch
from pomme.utils import planck, T_CMB
def get_velocity(model):
"""
Get the velocity from the TensorModel.
"""
# Extract parameters
r = torch.exp(model['log_r'])
v_in = torch.exp(model['log_v_in'])
v_inf = torch.exp(model['log_v_inf'])
beta = torch.exp(model['log_beta'])
R_star = torch.exp(model['log_r_star'])
# Compute velocity
v = torch.empty_like(r)
v[r <= r_star] = v_in
v[r > r_star] = v_in + (v_inf - v_in) * (1.0 - r_star / r[r > r_star])**beta
# Return
return v
def get_temperature(model):
"""
Get the temperature from the TensorModel.
"""
# Extract parameters
r = torch.exp(model['log_r'])
T_star = torch.exp(model['log_T_star'])
epsilon = torch.exp(model['log_epsilon'])
r_star = torch.exp(model['log_r_star'])
# Compute temperature
T = torch.empty_like(r)
T[r <= r_star] = T_star
T[r > r_star] = T_star * (r_star / r[r > r_star])**epsilon
# Return
return T
def get_abundance(model):
"""
Get the abundance from the TensorModel.
"""
return torch.exp(model['log_CO'])
def get_turbulence(model):
"""
Get the turbulence from the TensorModel.
"""
return torch.exp(model['log_turbulence']) * torch.ones_like(model['log_r'])
def get_boundary_condition(model, frequency, b):
"""
Get the boundary condition from the TensorModel.
model: TensorModel
The TensorModel object containing the model.
frequency: float
Frequency at which to evaluate the boundary condition.
b: float
Impact parameter of the line-of-sight in the spherical model.
"""
# Extract parameters
T_star = torch.exp(model['log_T_star'])
r_star = torch.exp(model['log_r_star'])
# Compute boundary condition
if b > r_star:
return planck(temperature=T_CMB, frequency=frequency)
else:
return planck(temperature=T_star, frequency=frequency)
Using these functions, we can build a SphericalModel object that can be used to generate synthetic observations or reconstruct the required parameters. The SphericalModel class is a convenience class that can make the necessary transformations, e.g. for ray tracing in a spherically symmetric geometry.
[10]:
from pomme.model import SphericalModel
smodel_truth = SphericalModel(rs, model, r_star=r_star)
smodel_truth.get_velocity = get_velocity
smodel_truth.get_abundance = get_abundance
smodel_truth.get_turbulence = get_turbulence
smodel_truth.get_temperature = get_temperature
smodel_truth.get_boundary_condition = get_boundary_condition
Spectral lines¶
We base our reconstructions on synthetic observations of two commonly observed rotational CO lines \(J = \{(3-2), \, (7-6)\}\).
[11]:
from pomme.lines import Line
lines = [Line('CO', i) for i in [2, 6]]
You have selected line:
CO(J=3-2)
Please check the properties that were inferred:
Frequency 3.457959899e+11 Hz
Einstein A coeff 2.497000000e-06 1/s
Molar mass 28.0101 g/mol
You have selected line:
CO(J=7-6)
Please check the properties that were inferred:
Frequency 8.066518060e+11 Hz
Einstein A coeff 3.422000000e-05 1/s
Molar mass 28.0101 g/mol
/home/frederikd/.local/lib/python3.9/site-packages/astroquery/lamda/core.py:145: UserWarning: The first time a LAMDA function is called, it must assemble a list of valid molecules and URLs. This list will be cached so future operations will be faster.
warnings.warn("The first time a LAMDA function is called, it must "
Frequencies¶
Next, we define the velocity/frequency range. We observe the lines in 50 frequency bins, centred around the lines, with a spacing of 500 m/s.
[12]:
vdiff = 500 # velocity increment size [m/s]
nfreq = 50 # number of frequencies
velocities = nfreq * vdiff * torch.linspace(-1, +1, nfreq, dtype=torch.float64)
frequencies = [(1.0 + velocities / constants.c.si.value) * line.frequency for line in lines]
Synthetic observations¶
We can now generate synthetic observations, directly from the SphericalModel object. We will use these later to derive our reconstructions.
[13]:
obss = smodel_truth.image(lines, frequencies, r_max=r_out)
Plot the resulting synthetic spectral line observations.
[14]:
for line, obs in zip(lines, obss):
plt.plot(velocities, obs, label=line.description)
plt.legend()
plt.xlabel('Velocity [m/s]')
plt.ylabel('Brightness [W / m$^2$ / Hz]')
plt.show()
Reconstruction setup¶
In this example, we will try to reconstruct the CO abundance, velocity, and temperature distribution. First, we define the model object for the reconstruction. Note that in the smodel defined above, all the right parameters are already stored, so we need a new one for the reconstruction. We take, $n_{\text{CO}}^{\text{init}}(r) = 5.0 \times `10^{14} , :nbsphinx-math:text{m}`^{-3} , (r_{\text{in}}/r)^{2} $, as initial guess for the CO abundance distribution, and initialise both the velocity and the temperature with the correct values.
[15]:
smodel_recon = SphericalModel(
rs = smodel_truth.rs,
model_1D = smodel_truth.model_1D.deepcopy(),
r_star = smodel_truth.r_star,
)
smodel_recon.get_abundance = lambda model: torch.exp(model['log_CO'])
smodel_recon.get_velocity = lambda model: torch.exp(model['log_velocity'])
smodel_recon.get_temperature = lambda model: torch.exp(model['log_temperature'])
smodel_recon.get_turbulence = get_turbulence
smodel_recon.get_boundary_condition = get_boundary_condition
# Define initial guess for the CO abundance
n_CO_init = 5.0e+14 * (smodel_recon.rs.min()/smodel_recon.rs)**2
# Intialize model with the truth, except for the CO abundance
smodel_recon.model_1D['log_CO' ] = np.log(n_CO_init).copy()
smodel_recon.model_1D['log_velocity' ] = np.log(v ).copy()
smodel_recon.model_1D['log_temperature'] = np.log(T ).copy()
# Fix all parameters, except for the ones we want to fit
smodel_recon.model_1D.fix_all()
smodel_recon.model_1D.free(['log_CO', 'log_velocity', 'log_temperature'])
We can explore the model parameters with the info() function.
[16]:
smodel_recon.model_1D.info()
Variable key: Free/Fixed: Field: Min: Mean: Max:
log_r Fixed True +2.343e+01 +2.919e+01 +3.494e+01
log_CO Free True +1.082e+01 +2.233e+01 +3.385e+01
log_turbulence Fixed False +6.908e+00 +6.908e+00 +6.908e+00
log_v_in Fixed False +4.605e+00 +4.605e+00 +4.605e+00
log_v_inf Fixed False +9.903e+00 +9.903e+00 +9.903e+00
log_beta Fixed False -6.931e-01 -6.931e-01 -6.931e-01
log_epsilon Fixed False -5.108e-01 -5.108e-01 -5.108e-01
log_T_star Fixed False +7.824e+00 +7.824e+00 +7.824e+00
log_r_star Fixed False +2.573e+01 +2.573e+01 +2.573e+01
log_velocity Free True -4.605e+00 +6.928e+00 +9.903e+00
log_temperature Free True +2.298e+00 +5.613e+00 +7.824e+00
sizes: (1495978707000000.0,)
shape: (1024,)
Or, can plot them.
[17]:

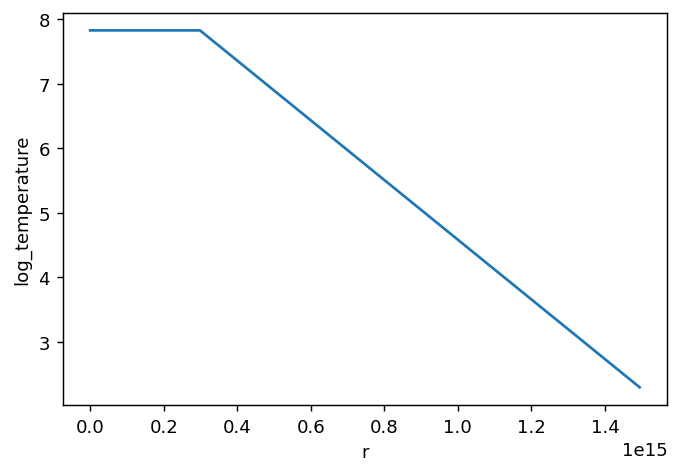

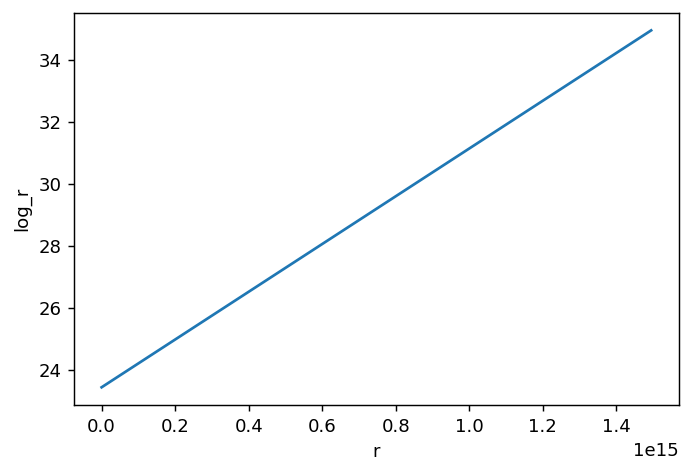

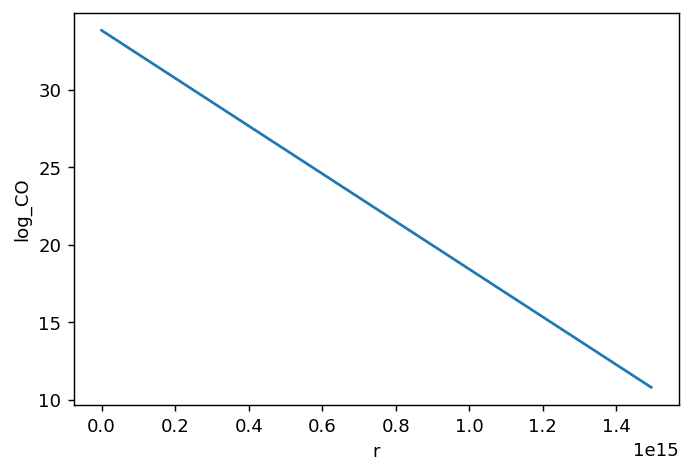

smodel_recon.plot()
log_turbulence 6.907755278982137
log_v_in 4.605170185988092
log_v_inf 9.903487552536127
log_beta -0.6931471805599453
log_epsilon -0.5108256237659907
log_T_star 7.824046010856292
log_r_star 25.731216669096725
Loss functions¶
We first create Loss object that can conveniently store the different losses. We will use a reproduction loss (split into an averaged and relative component), a smoothness, and a continuity loss.
[18]:
from pomme.loss import Loss, diff_loss
losses = Loss(['avg', 'rel', 'smt', 'cnt'])
Reproduction loss¶
We split the reproduction loss into an averaged and a relative component, \begin{equation*} \mathcal{L}_{\text{rep}}\big(f(\boldsymbol{m}), \boldsymbol{o} \big) \ = \ \mathcal{L}_{\text{rep}}\Big( \big\langle f(\boldsymbol{m}) \big\rangle, \, \left\langle\boldsymbol{o}\right\rangle \Big) \ + \ \mathcal{L}_{\text{rep}}\left( \frac{f(\boldsymbol{m})}{\big\langle f(\boldsymbol{m})\big\rangle}, \, \frac{\boldsymbol{o}}{\left\langle \boldsymbol{o}\right\rangle} \right) , \end{equation*}
[19]:
# Define averaging and relative function
avg = lambda arr: arr.mean(axis=1)
rel = lambda arr: torch.einsum("ij, i -> ij", arr, 1.0/avg(arr))
def avg_loss(smodel, imgs):
"""
Compute the average loss.
"""
return torch.nn.functional.mse_loss(avg(imgs), avg(obss))
def rel_loss(smodel, imgs):
"""
Compute the relative loss.
"""
return torch.nn.functional.mse_loss(rel(imgs), rel(obss))
Smoothness loss¶
The smoothnes loss in spherical symmetry is defined as, \begin{equation} \mathcal{L}[q] \ = \ \int_{0}^{\infty} 4 \pi r^{2} \text{d} r \ \big\{ \partial_{r} q(r) \big\}^{2} \end{equation}
[20]:
def smoothness_loss(smodel):
"""
Smoothness loss for CO, velocity, and temperature distributions.
"""
# Get a mask for the elements outsife the star
outside_star = torch.from_numpy(smodel.rs) > torch.exp(smodel.model_1D['log_r_star'])
# Compute and return the loss
return ( diff_loss(smodel.model_1D['log_CO' ][outside_star]) \
+ diff_loss(smodel.model_1D['log_velocity' ][outside_star]) \
+ diff_loss(smodel.model_1D['log_temperature'][outside_star]) )
Continuity loss¶
In spherical symmetry, the regularisation loss that assumes a steady state and enforces the continuity equation, reads, \begin{equation*} \mathcal{L}[\rho, v] \ = \ \int_{0}^{\infty} 4\pi r^{2} \text{d}r \left\{ \frac{1}{\rho \, r^{2}} \, \partial_{r} \left( r^{2} \rho \, v \right) \right\}^{2} . \end{equation*}
[21]:
def steady_state_cont_loss(smodel):
"""
Loss assuming steady state hydrodynamics, i.e. vanishing time derivatives.
"""
# Get a mask for the elements outsife the star
outside_star = torch.from_numpy(smodel.rs) > torch.exp(smodel.model_1D['log_r_star'])
# Get the model variables
rho = smodel.get_abundance(smodel.model_1D)[outside_star]
v_r = smodel.get_velocity (smodel.model_1D)[outside_star]
r = torch.from_numpy(smodel.rs) [outside_star]
# Continuity equation (steady state): div(ρ v) = 0
loss_cont = smodel.diff_r(r**2 * rho * v_r, r) / (rho*r**2)
# Compute the mean squared losses
loss = torch.mean(4.0*torch.pi*r**2*(loss_cont)**2)
# Return losses
return loss
Fit function¶
With everything in place, we can finally define the fit function.
[22]:
from torch.optim import Adam
from tqdm import tqdm
def fit(losses, smodel, N_epochs=10, lr=1.0e-1, w_avg=1.0, w_rel=1.0, w_smt=1.0, w_cnt=1.0):
# Define optimiser
optimizer = Adam(smodel.model_1D.free_parameters(), lr=lr)
# Iterate optimiser
for _ in tqdm(range(N_epochs)):
# Forward model
imgs = smodel.image(lines, frequencies, r_max=r_out)
# Compute the losses
losses['avg'] = w_avg * avg_loss(smodel, imgs)
losses['rel'] = w_rel * rel_loss(smodel, imgs)
losses['smt'] = w_smt * smoothness_loss(smodel)
losses['cnt'] = w_cnt * steady_state_cont_loss(smodel)
# Set gradients to zero
optimizer.zero_grad()
# Backpropagate gradients
losses.tot().backward()
# Update parameters
optimizer.step()
# Return the images and losses
return imgs, losses
Experiments¶
[30]:

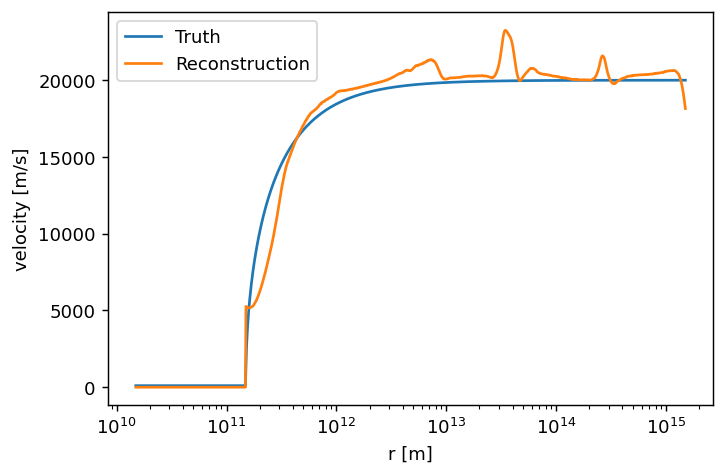

imgs, losses = fit(losses, smodel_recon,
N_epochs = 3,
lr = 1.0e-1,
w_avg = 1.0e+0,
w_rel = 1.0e+0,
w_smt = 1.0e+0,
w_cnt = 1.0e+0,
)
losses.renormalise_all()
losses.reset()
smodel_recon.model_1D.save('1D_stellar_wind_recon_000.h5')
0%| | 0/3 [00:00<?, ?it/s]/home/frederikd/.local/lib/python3.9/site-packages/torch/autograd/__init__.py:200: UserWarning: CUDA initialization: The NVIDIA driver on your system is too old (found version 9010). Please update your GPU driver by downloading and installing a new version from the URL: http://www.nvidia.com/Download/index.aspx Alternatively, go to: https://pytorch.org to install a PyTorch version that has been compiled with your version of the CUDA driver. (Triggered internally at ../c10/cuda/CUDAFunctions.cpp:109.)
Variable._execution_engine.run_backward( # Calls into the C++ engine to run the backward pass
100%|██████████| 3/3 [00:34<00:00, 11.65s/it]
[22]:
imgs, losses = fit(losses, smodel_recon,
N_epochs = 100,
lr = 1.0e-1,
w_avg = 1.0e+0,
w_rel = 1.0e+0,
w_smt = 1.0e+0,
w_cnt = 1.0e+0,
)
smodel_recon.model_1D.save('1D_stellar_wind_recon_100.h5')
losses.plot()
100%|██████████| 100/100 [18:03<00:00, 10.84s/it]
[24]:
smodel_recon.model_1D = TensorModel.load('1D_stellar_wind_recon_100.h5')
[38]:
plt.figure(dpi=130)
plt.plot(smodel_truth.rs, smodel_truth.get_abundance(smodel_truth.model_1D).data, label='Truth')
plt.plot(smodel_recon.rs, smodel_recon.get_abundance(smodel_recon.model_1D).data, label='Reconstruction')
plt.xscale('log')
plt.yscale('log')
plt.xlabel('r [m]')
plt.ylabel('CO abundance [m$^{-3}$]')
plt.legend()
[38]:
<matplotlib.legend.Legend at 0x7f737396df40>
[39]:
plt.figure(dpi=130)
plt.plot(smodel_truth.rs, smodel_truth.get_temperature(smodel_truth.model_1D).data, label='Truth')
plt.plot(smodel_recon.rs, smodel_recon.get_temperature(smodel_recon.model_1D).data, label='Reconstruction')
plt.xscale('log')
plt.yscale('log')
plt.xlabel('r [m]')
plt.ylabel('Temperature [K]')
plt.legend()
[39]:
<matplotlib.legend.Legend at 0x7f7373a4f610>
[41]:
plt.figure(dpi=130)
plt.plot(smodel_truth.rs, smodel_truth.get_velocity(smodel_truth.model_1D).data, label='Truth')
plt.plot(smodel_recon.rs, smodel_recon.get_velocity(smodel_recon.model_1D).data, label='Reconstruction')
plt.xscale('log')
plt.xlabel('r [m]')
plt.ylabel('velocity [m/s]')
plt.legend()
[41]:
<matplotlib.legend.Legend at 0x7f73736fd5b0>
[ ]:
